TR-30NC Rolling Machine Home > Product > Rolling Machine > TR-18NC/30NC > TR-30NC Rolling Machine
product name:

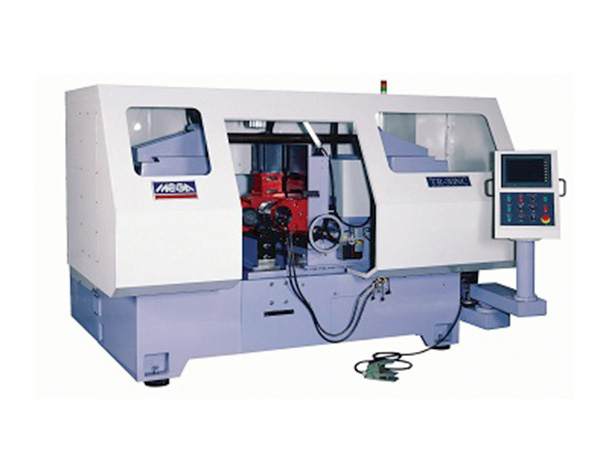

TR-30NC Rolling Machine


TR-30NC Rolling Machine
1. A servomotor is used to drive the roller shaft of the machine, so the rollers can be set on the screen according to different requirements (the same direction, reverse direction, split equidistant rotation).
2. The mechanical spiral Angle USES a decoder to interpret and coordinate the position of the digital display Angle to ensure the Angle accuracy.
3. All operating modes are selected and input on the screen, and the position of the roller is monitored by the optical ruler with the oil pressure electronic control servo valve, and the accuracy is controlled at 0.02 MM.
4. The machine has a special screw thread rolling system for the tooth system, the error of the roller is within 2MM, the machine will automatically implement the tooth for the rolling process, which can extend the service life of the roller.
5. The machine can be divided into the depth of the roller feed, and complete the workpiece rolling system according to the input instructions of the operator.
6. The machine roller shaft mechanical adjustable Angle + 15 ° 105 ° ~ -.

appellation
models
TR-30NC
The diameter of the roll diameter of the fixed length work (in-feed) The largest diameter Φ100mm
The path Φ6mm
The longest
200mm
The modulus
MAX  M2
worm
MAX  M2.5(L50mm)
pitch
0.6~10mm
Rolling workpiece rolling diameter range(thru-feed) The largest diameter
Φ100mm
The path Φ6mm
The longest Free
pitch
0.6~10mm
speed
15.6-62.4RPM
The largest diameter
Φ200mm
roller The inner diameter
Φ70mm orΦ85mm
  thickness
200mm
  The transmission power
10HP*2
Roller shaft
Maximum distance
310mm
The minimum distance
195mm
Cooling the pump power 1/2Hp
Oil pressure system horsepower
7.5Hp
Roller maximum pressure
30Tons
Mechanical volume
Ground to roller center height
936mm
Covers an area of
3010x2830mm
High total
1746mm
weight
The net weight
6600kgs
Gross weight
7000kgs
