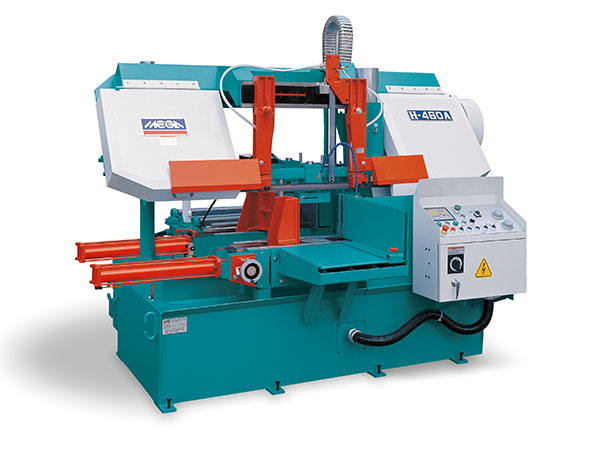

Automatic Gantry Band Saw Machine / H-460A / GA
Home > Product > H-Series Column Type > Fully automatic seri > Automatic Gantry Band Saw Machine / H-460A / GA
 |
|
I. Features of this machine
1. Precise cutting length setting device
2. Automatic lifting and fast approach design of saw frame
3. Rotary detection system for saw blade
4. Tension control of hydraulic saw belt
5. Quick double clamp, 3 Point clamping system
6. Independent double-open feeding clamp
7. Automatic chip cleaning system
8. Feed switch
2. Standard equipment
| Toolbox | 1 |
| 2. 2M long roller table | 1 set |
| 3. Chip removal steel brush wheel | 1 item |
| Saw band | 1 |
| 5. Hydraulic tension | Group 1 |
| 6. Automatic chip cleaning device | Group 1 |
| 7. Operation manual and parts inventory | 1 copy |
1. Saw speed stepless speed change
2. Adjustable clamp pressure
3. Saw speed adjustment booster valve
4. GA-type cutting length computer numerical control
5. Deep cutting
4. Specification table
| Specifications / models | H-460A / GA | |
|---|---|---|
| Sawing capacity | mm | 460, 480W x 460H |
| in | 18, 18.9W x 18H | |
| Whole cutting | mm | 368W x 210H |
| in | 14.4W x 8.2H | |
| Saw band size | mm | 41W x 1.3t x 5300L |
| In | 1.61W x 0.051t x 208.66L | |
| Saw speed | M / min | 25,32,42,55,70,80 stepless speed change 20-80 (optional) |
| F / min | 82,105,138,180,230,260 stepless speed change 65-260 (optional) | |
| motor | HP | Saw band 7.5, oil pressure 2, cooling 1/8 |
| KW | Saw band 5.6, oil pressure 1.5, cooling 0.1 | |
| Sealing size (LXWXH) | mm | 2700 x 2270 x 2050 |
| ft | 8.86 x 7.45 x 6.72 | |
| Net weight / Gross weight | kg | 3350/3600 |
| lb | 7380/7930 | |
