Automatic gantry band saw machine
Home > Product > H-Series Column Type > Fully automatic seri > Automatic gantry band saw machine
|

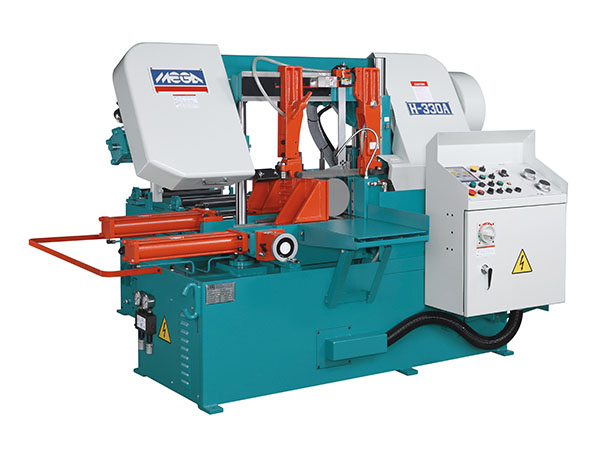

Automatic Gantry band saw Machine /h-330a/ga
One, the fully automatic gantry band saw machine characteristic
1. Precise cutting length setting device
2. Saw frame automatic elevation and fast approaching design
3. Saw blade rotation detection system
4. Hydraulic saw band Tension control
5. Fast double clamp, 3-point clamping system
6. Independent Double Open Feeding clamp
7. Automatic Chip Cleaning System
8. Feeding switch
Second, fully automatic gantry band saw machine standard equipment
1. Toolbox
1 only
2.2M Long Roll Luntai
1 sets
3. Clean Scrap steel brush wheel
1 pieces
4. Saw Band
1 article
5. Hydraulic pressure
1 Groups
6. Automatic Chip cleaning device
1 Groups
7. Operation Manual and parts inventory
1 copies
Three, fully automatic gantry band saw machine choose to equip
1. Saw speed without segment speed
2. Clamp PRESSURE Adjustable
3. Saw cutting rate adjustment with the increase valve
4. GA-type cutting length computer numerical control
5. Deep Cutting
IV. Specification Sheet
Specifications/Models
H-330a/ga
Cutting ability
mm
330,350w x 330H
In
13,13.7w x 13H
Whole cut
mm
250W x 175H
In
9.8W x 6.9H
Saw Belt size
mm
Wx 1.1t x 3920L
In
1.34W x0.042t x 154.33L
Saw Band speed
/
25,32,42,55,70,80 No segment Speed 20-80 (optional)
F/min
82,105,138,180,230,260 no-segment speed 65-260 (optional)
Motor
HP
Saw band 5, oil pressure 1, cooling 1/8
KW
Saw band 3.75, oil pressure 0.75, cooling 0.1
Enclosure Size (L x W x H)
mm
$number x 2270 x 1700
Ft
7.22 x 7.45 x 5.58
Net weight/gross weight
Kg
1630/1850
lb
3586/4070
Automatic Gantry band saw Machine /h-330a/ga
One, the fully automatic gantry band saw machine characteristic
1. Precise cutting length setting device
2. Saw frame automatic elevation and fast approaching design
3. Saw blade rotation detection system
4. Hydraulic saw band Tension control
5. Fast double clamp, 3-point clamping system
6. Independent Double Open Feeding clamp
7. Automatic Chip Cleaning System
8. Feeding switch
Second, fully automatic gantry band saw machine standard equipment
Three, fully automatic gantry band saw machine choose to equip
1. Saw speed without segment speed
2. Clamp PRESSURE Adjustable
3. Saw cutting rate adjustment with the increase valve
4. GA-type cutting length computer numerical control
5. Deep Cutting
IV. Specification Sheet
1. Precise cutting length setting device
2. Saw frame automatic elevation and fast approaching design
3. Saw blade rotation detection system
4. Hydraulic saw band Tension control
5. Fast double clamp, 3-point clamping system
6. Independent Double Open Feeding clamp
7. Automatic Chip Cleaning System
8. Feeding switch
Second, fully automatic gantry band saw machine standard equipment
1. Toolbox | 1 only |
2.2M Long Roll Luntai | 1 sets |
3. Clean Scrap steel brush wheel | 1 pieces |
4. Saw Band | 1 article |
5. Hydraulic pressure | 1 Groups |
6. Automatic Chip cleaning device | 1 Groups |
7. Operation Manual and parts inventory | 1 copies |
1. Saw speed without segment speed
2. Clamp PRESSURE Adjustable
3. Saw cutting rate adjustment with the increase valve
4. GA-type cutting length computer numerical control
5. Deep Cutting
IV. Specification Sheet
Specifications/Models | H-330a/ga | |
---|---|---|
Cutting ability | mm | 330,350w x 330H |
In | 13,13.7w x 13H | |
Whole cut | mm | 250W x 175H |
In | 9.8W x 6.9H | |
Saw Belt size | mm | Wx 1.1t x 3920L |
In | 1.34W x0.042t x 154.33L | |
Saw Band speed | / | 25,32,42,55,70,80 No segment Speed 20-80 (optional) |
F/min | 82,105,138,180,230,260 no-segment speed 65-260 (optional) | |
Motor | HP | Saw band 5, oil pressure 1, cooling 1/8 |
KW | Saw band 3.75, oil pressure 0.75, cooling 0.1 | |
Enclosure Size (L x W x H) | mm | $number x 2270 x 1700 |
Ft | 7.22 x 7.45 x 5.58 | |
Net weight/gross weight | Kg | 1630/1850 |
lb | 3586/4070 |
